SPECIFICATIONS
Brand Name: VisualBeat
Display Ratio: 16:9
Bracket Type: Ordinary bracket
Display Size: 15.6
High-Dynamic Range: other
Resolution: 1920 x 1080
Screen curvature: none
Origin: Mainland China
Horizontal Viewing Angle: 178°
Panel Type: IPS
Vertical Viewing Angle: 178°
Interface Type: TYPE-C
Matrix color depth: 10 bit
Refresh rate sync technology: AMD FreeSync
Black and White Response Time: 5 ms
Screen Type: LCD
Built-in Speaker: Yes
Brightness: 300cd/m
Pixel Pitch: 0.12445mm
Screen surface: MATT
Application: Laptop
Contrast Ratio: 1000:1
Feature: Speaker
Feature: Touch Screen
Products Status: STOCK
Certification: CE
Certification: FCC
Certification: RoHS
Contrast Ratio: 1000:1
Refresh Rate: 60Hz
Response Time: 3ms
Resolution: 1920*1080
Brightness: 500cd/㎡(maximum)
Touch Screen: Capacitive Touch Panel
Multi-Touch: 10-Point Touch
Support OS: Windows, Mac, Android, Linux
Size: 15.6''
Vesa: 75*75 mm
Viewing angle: Full View
Weight: 640g
Gross Weight: 2.0kg
Certification: CE, FCC, RoHS, CCC

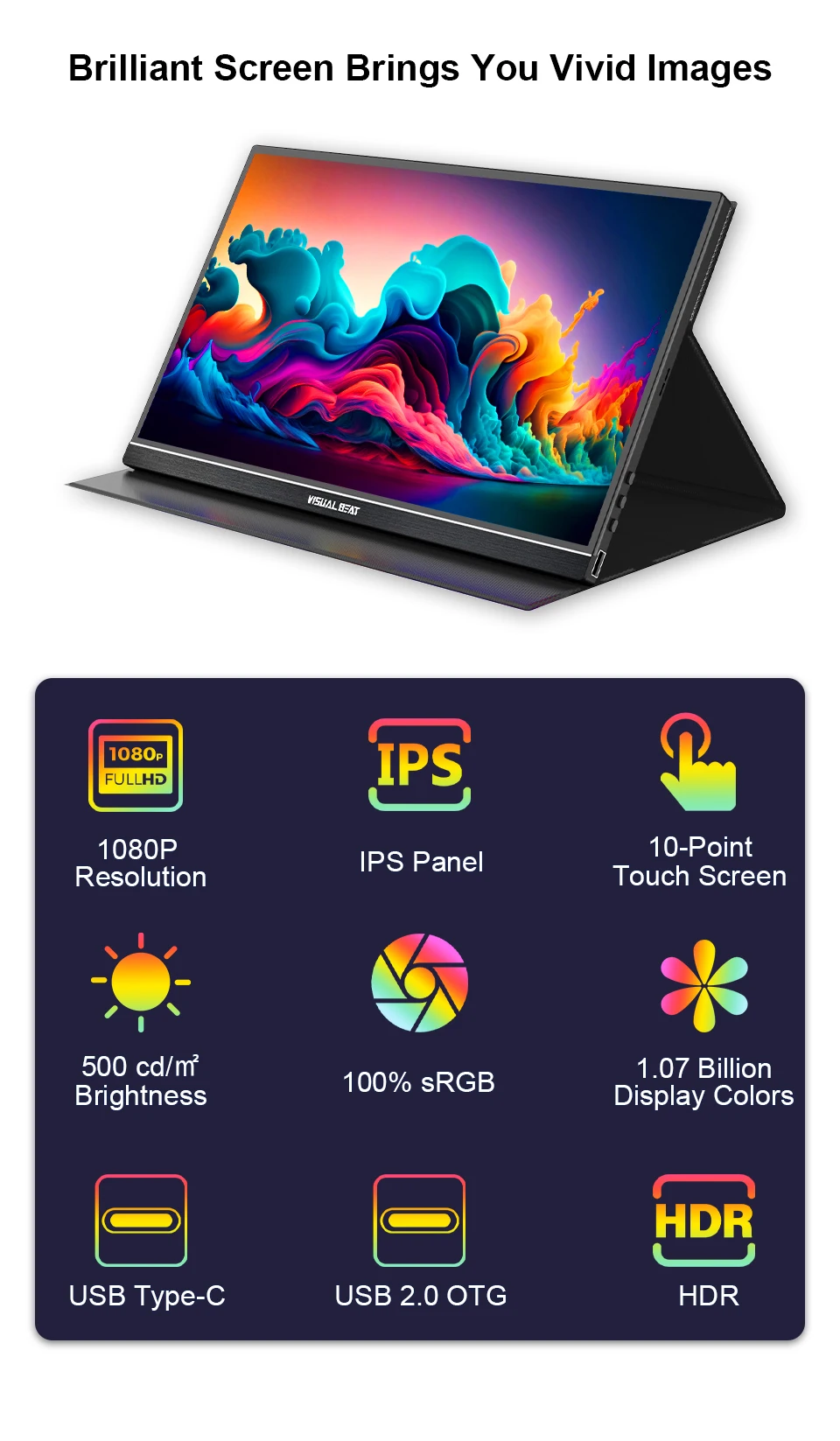

Visual Beat 15.6inch Touch Function Portable Monitor
Type C and HDMI Dual Output Connection
1920*1080P+HDR IPS 178°Wide Angle Screen
For Nintendo SWITCH/PS4/XBOX One/Raspberry PI extend
For AE,AI,PR,PS image or video edit software a second screen extend
Touch Function Remark:
Laptop/PC Touch: Support WINDOWS, MacOS, Linux SYSTEM.
Android Phone Touch: Only support THUNDERBOLTS TYPE C phone.
Some of model cannot support touch function like LG V30, aLL ONE PLUS phone cannot support touch function. Touch function depends on phone model, Please contact our service center if you need to use touch function before purchase. Thanks.
If can not light up the screen, need extra power on the screen. Use a 5V-3A adapter to connect the screen via the Type C to USB cable.
No Touch Devices Remark:
All gaming consoles like Nintendo SWITCH, PS4, XBOX One and so on.
ONE PLUS PHONE, Macbook Pro Laptop with Macbook OS System.
Some TV BOX model do not support the Android touch.
Laptop Touch Connection Remark:
1. USB to Type C cable to connect laptop usb port and monitor type c data port.
2. USB to Type C cable to connect charger and power by the monitor type c pd charging port.
3. HDMI to HDMI cable to connect the laptop and monitor.
Q&A
Q: Is that ok for one TYPE C to TYPE C cable to connect my macbook and Samsung S8+?
A: Yes, only one cable plug and can play, no need charger. If need power by the macbook or mobile phone, can use a PD Charger to charge on the PD type c port in the monitor. Then it can reverse charging your macbook or S8+.
Q:What is the difference between the 3.0 charger and the PD Charger?
A: The charger in the parcel is a normal 5V-3A, 9V-2A,12V-1.5 multifuciton charger, only for the support
of the monitor light up. While a PD Charger can charging the mobile phone or laptop reversed.
Q: Does it support any kind of mobile phone connection via TYPE-C?
A: VB ortable Monitor only support the Thunder Type-C port mobile phone via TYPE-C cable.
Q: Does it support any kind of laptop via TYPE-C?
A: VB Portable Monitor only support the Thunder TYPE-C laptop via TYPE-C cable.
Otherwise, it needs to be connected via HDMI Cable on the laptop.
Q: How do I use it to connect my SWITCH?
A: Take off the switch controller first, then use the TYPE-C cable to connect the switch screen,
at the same time, using the Charger to connect the monitor via USB to Type C cable.
Q: What is the warranty of the monitor?
A: VB offer our buyer 7 days no reason return, 15 days no reason exchange, 1 year warranty.
While any artificial damage will not enjoy the free warranty.
Q: Will I need to pay the customs tax in my country?
A: According to aliexpress shopping policy, the customs tax is bared by the buyer.
